PILOUS OHE90 forgókefés sorjátlanítógép

Cikkszám: OHE90
pilous ohe90 forgókefés sorjátlanítógép

PILOUS OHE90 forgókefés sorjátlanítógép

Cikkszám: OHE90

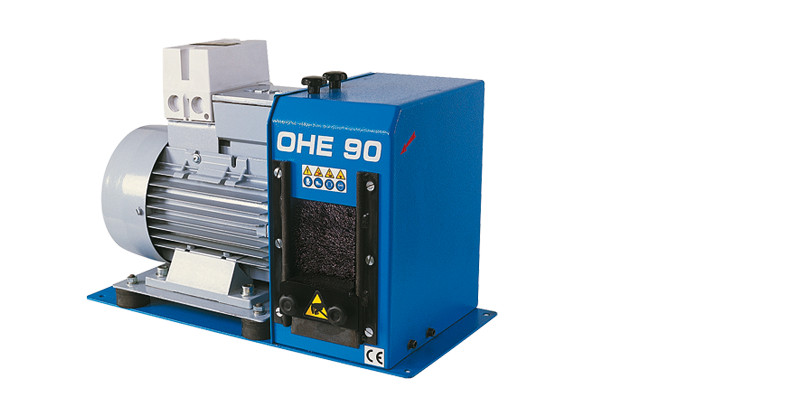

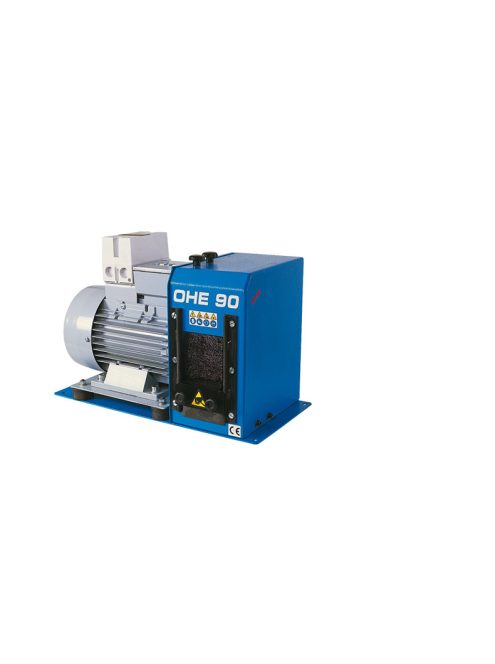

OHE 90

Simple and very fast deburring of all kinds of sections (including the internal edges) or full material by a rotary steel brush. High quality construction of the machine along with a three-phase motor make use of the machine possible in specialized workshops as well as in production plants. Compared to manual deburring it reduces the required time and hence reduces your costs. While maintaining incomparably higher and balanced quality of deburring.

We recommend using stainless steel brush for stainless steel products. Example of the difference between manual deburring (including internal edges) and OH 90

Hollow section 60 x 60 x 2 mm: manual deburring - 32 s machine OH 90 - 8 s
Tube diameter 50 x 2 mm: manual deburring - 21 s machine OH 90 - 4 s


Connection 400 V, 50 Hz
Total wattage 2,2 kW
Rpm 1.400 r./1 min.
Maximum workpiece dimension 90 x 90 mm
Number of deburring brushes 1 - 3 pcs
Machine dimensions 500 x 300 x 330 mm
Machine weight 47 kg
